Product details
The nozzle has the characteristics of small volume, light weight, simple structure, good sealing, and convenient installation and operation, making it an ideal product for connecting pipelines.
Features: If this product is used in newly laid pipeline projects, it can achieve excellent comprehensive economic results in terms of manpower, material resources, and financial resources.
Main materials of the nozzle: ductile iron, rubber
Scope of application: Suitable for connecting cast pipes, ball pipes, PVC pipes or PE pipes
Specification: ° 90 * 98 φ110*118 φ160*168 φ200*220 φ315*322
Nominal pressure: ≤ 1.6Mpa

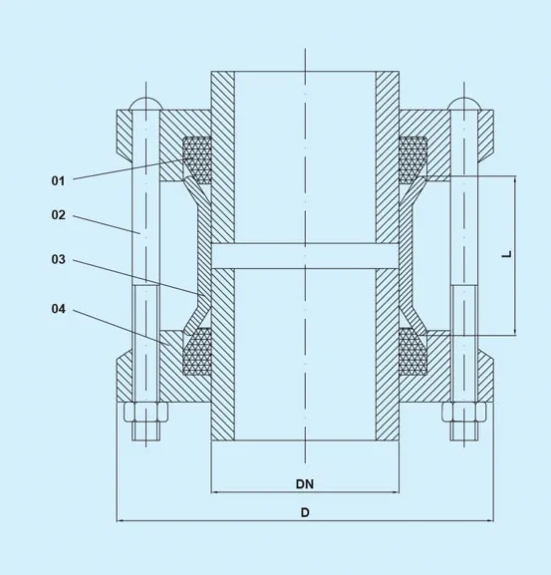

Part & Materials
| No | Part | Material |
| 1 | GASKET | EPDM |
| 2 | FASTNER | GD 4.8 |
| 3 | SLEEVE | STEEL |
| 4 | END RING | EN GJS400-15 |
Dimensions(mm)
| DN | RANGE | L | D | BOLT | |
| mm | mm | mm | SIZE | QTY | |
| 50 | 59-72 | 102 | 165 | M12X180 | 2 |
| 65 | 72-85 | 102 | 185 | M12X180 | 2 |
| 80 | 88-103 | 102 | 185 | M12X180 | 4 |
| 100 | 109-128 | 102 | 218 | M12X180 | 4 |
| 125 | 132-146 | 102 | 250 | M12X180 | 4 |
| 150 | 159-182 | 102 | 272 | M12X200 | 4 |
| 175 | 192-210 | 130 | 312 | M12X200 | 4 |
| 200 | 218-235 | 130 | 335 | M12X220 | 4 |
| 250 | 272-289 | 130 | 405 | M12X220 | 6 |
| 300 | 315-332 | 130 | 460 | M12X220 | 6 |
| 300 | 322-339 | 130 | 435 | M12X220 | 6 |
Dimensions(mm)
| DN | RANGE | L | D | BOLT | |
| mm | mm | mm | SIZE | QTY | |
| 350 | 340-360 | 150 | 455 | M16X250 | 6 |
| 350 | 357-368 | 150 | 518 | M16X250 | 8 |
| 350 | 374-391 | 150 | 568 | M16X250 | 8 |
| 400 | 400-429 | 150 | 580 | M16X250 | 8 |
| 450 | 418-435 | 150 | 580 | M16X250 | 8 |
| 400 | 425-442 | 150 | 625 | M16X260 | 8 |
| 450 | 455-472 | 150 | 665 | M16X260 | 10 |
| 500 | 500-532 | 150 | 690 | M16X260 | 10 |
| 500 | 527-544 | 150 | 715 | M16X260 | 10 |
| 500 | 555-572 | 150 | 715 | M16X260 | 10 |
| 600 | 600-630 | 150 | 790 | M16X260 | 10 |
