The sealing strip is used to seal the upper and lower parts of the plugging Blocker 500, and it is fastened by bolts and nuts as a whole. Its structure is simple and convenient to use, and it can be widely used in water supply and drainage, as well as various liquid, gas, and pressure pipelines caused by sand holes, air holes, horizontal and vertical fractures. The plugging device and the socket plugging device are pipeline repair devices that save labor, time, and cost. The socket plugging device is a device for repairing water leakage at the socket connection of two pipes, and the plugging device is a device for repairing parts other than the socket.
The structure of the plugging Blocker 500 is simple, consisting of only two main bodies and two rubber pads, making it easy to install. Simply fit the two main bodies together at the leakage point and tighten the nut to complete the emergency repair of the pipeline. Using this device can not only save water outage time but also reduce the cost of emergency repair.

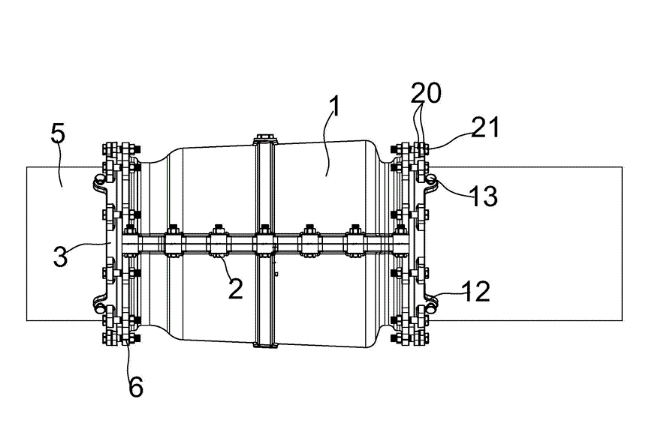

The plugging Blocker 500 is a pipeline plugging device, also known as a clamp joint, consisting of a symmetrical two part clamp body, clamp pressure flange, sealing ring, sealing strip, and fastener. The inner cavity and outer part of the clamp body are V-shaped, and the flange and pressure flange of the clamp body are connected by a concave convex encrypted sealing ring. The connection between the upper and lower clamp bodies is sealed by sealing strips and fastened by bolts and nuts as a whole. Its structure is simple and convenient to use, and it can be widely used in water supply and drainage, as well as in water and gas leakage accidents caused by sand holes, air holes, horizontal and vertical fractures of various liquids, gases, and pressure pipelines. It saves labor, time, and costs.
DN15（4分）*80 DN20（6分）*90 DN25 （1寸）*100 DN32（1.2寸）*100
DN40（1 3/4寸）*110 DN50（2寸）*120 DN50（2寸）*300 DN65*200
DN65*400 DN80*200 DN80*300 DN80*400
DN80*500 DN80*1000 DN100*200 DN100*300
DN100*500 DN100*750 DN100*1000 DN125*200
DN125*400 DN125*500 DN125*1000 DN150*200
DN150*300 DN150*400 DN150*500 DN150*750
DN150*1000 DN200*200 DN200*300 DN200*400
DN200*500 DN200*750 DN200*1000 DN250*200
DN250*400 DN250*500 DN250*1000 DN300*200
DN300*300 DN300*400 DN300*500 DN300*1000
DN350*500 DN350*100 DN400*300 DN400*500
DN400*1000 DN450*500 DN450*1000DN500*500
DN500*1000 DN550*500 DN550*1000 DN600*500
DN600*1000 DN650*500 DN650*1000 DN700*500
DN700*1000 DN800*650 DN800*1000 DN900*500
DN900*1000 DN1000*500 DN1000*1000 DN1100*500
DN1100*1000 DN1200*500 DN1200*1000 DN1400*500
DN1400*1000 DN1600*500 DN1600*1000 DN1800*500
DN1800*1000 DN2000*500 DN2000*1000 DN2200*500
DN2200*1000 DN2400*500 DN2400*1000
