Concealed Rod Underground Spring Seat Sealing Gate Valve

CONTACT

Product details

The concealed rod underground spring seat sealing gate valve is suitable for opening and closing on underground pipelines.

1. Gate valve: Concealed underground spring seat sealing gate valve with integral valve cover and concealed rod design, compact structure; The valve stem nut and gate plate have a two body structure, with no jamming phenomenon occurring; Straight channel, no leakage cavity; The valve stem is sealed with an O-ring.

2. Has excellent anti-corrosion performance, with epoxy resin sprayed inside and outside the shell, and enamel lining on the inner surface when needed; The connecting bolts are hexagonal bolts with top sealing.

3. Gate valve: Reliable and hygienic epoxy resin meets the hygiene standard GB/T17219-1998, and the overall coating of the gate plate is rubber that meets the hygiene inspection; The valve stem, valve stem nut and other components are made of stainless steel or bronze materials that are not corroded by water.

Gate valve: suitable for industries such as drinking water, water supply and drainage, sewage treatment, natural gas and gas, industry, and food.


Main performance parameters:

Pressure level	1.0MPa、1.6MPa、2.5MPa
Valve body pressure resistance	1.5MPa、2.4MPa、3.75MPa
Sealing test	1.1MPa、1.76MPa、2.75MPa
working temperature	0～80℃
Applicable media	Water, oil, steam, etc

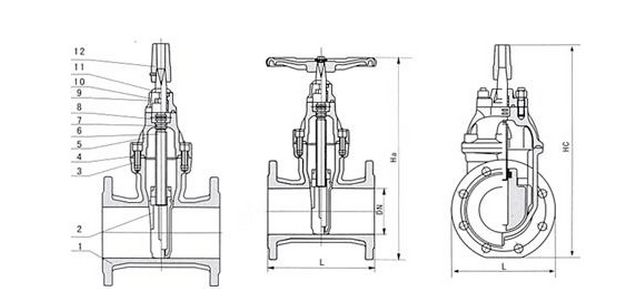

Main dimensions and weight:

model	DNmm	L	D1		D	Z-Φd		H
model	DNmm	L	1.0MPa	1.6MPa	D	1.0MPa	1.6MPa	H
RVC（H）X Z45X Z41X	50	180	125		165	4-Φ18		268
	65	190	145		185	4-Φ18		296
	80	240	160		200	8-Φ18		340
	100	250	180		235	8-Φ18		367
	125	254	210		250	8-Φ18		424
	150	280	240		290	8-Φ23		515
	200	300	295		340	8-23	12-23	550
	250	380	350	355	410	12-23	12-25	685
	300	400	400	410	460	12-23	12-25	760
	350	430	460	470	520	16-23	16-25	845
	400	406	515	525	580	16-26	16-30	945
	450	432	565	585	640	20-26	20-30	1020
	500	457	620	650	715	20-26	20-34	1140
	600	508	725	770	840	20-30	20-36	1320
